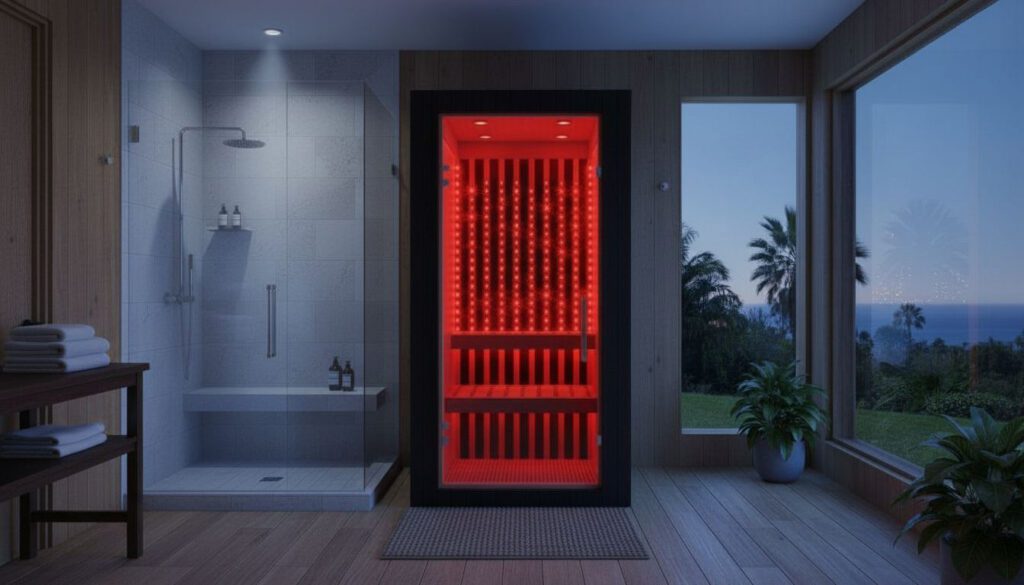

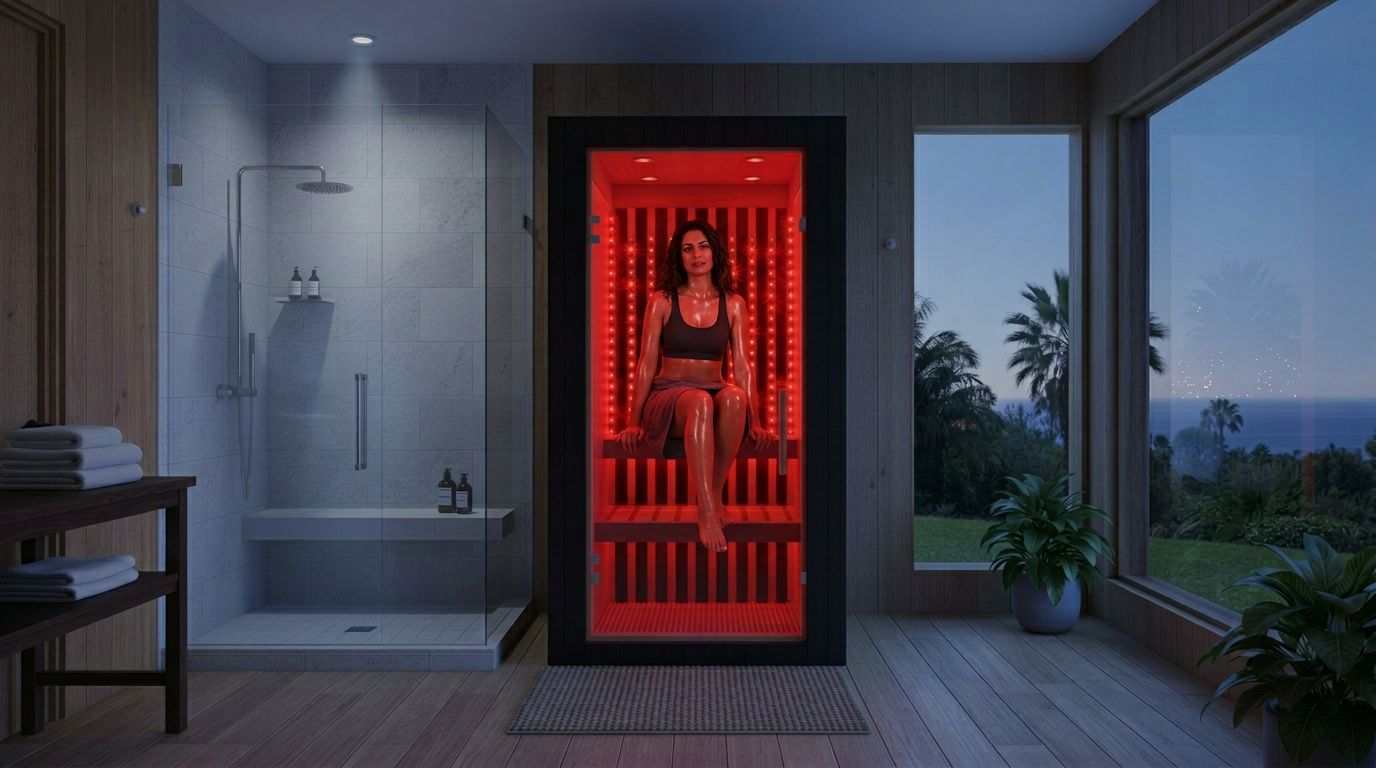

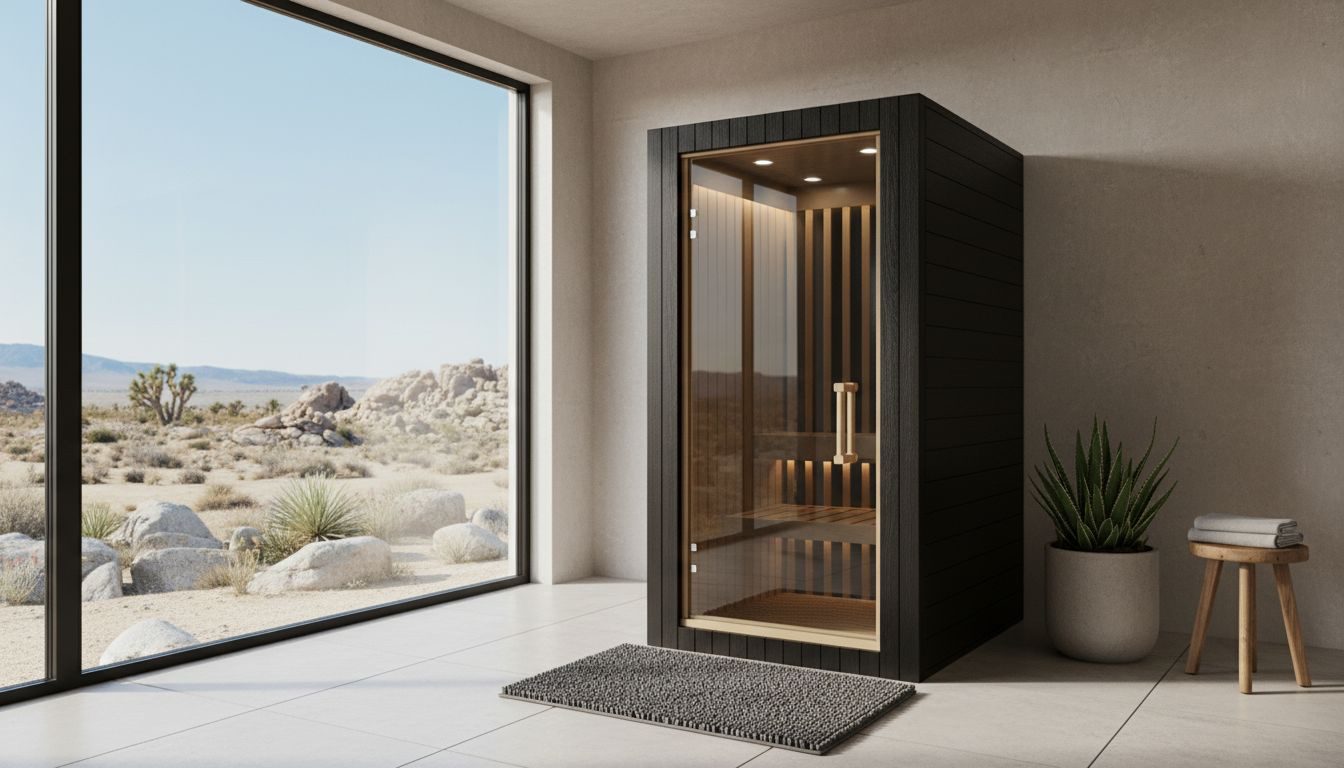

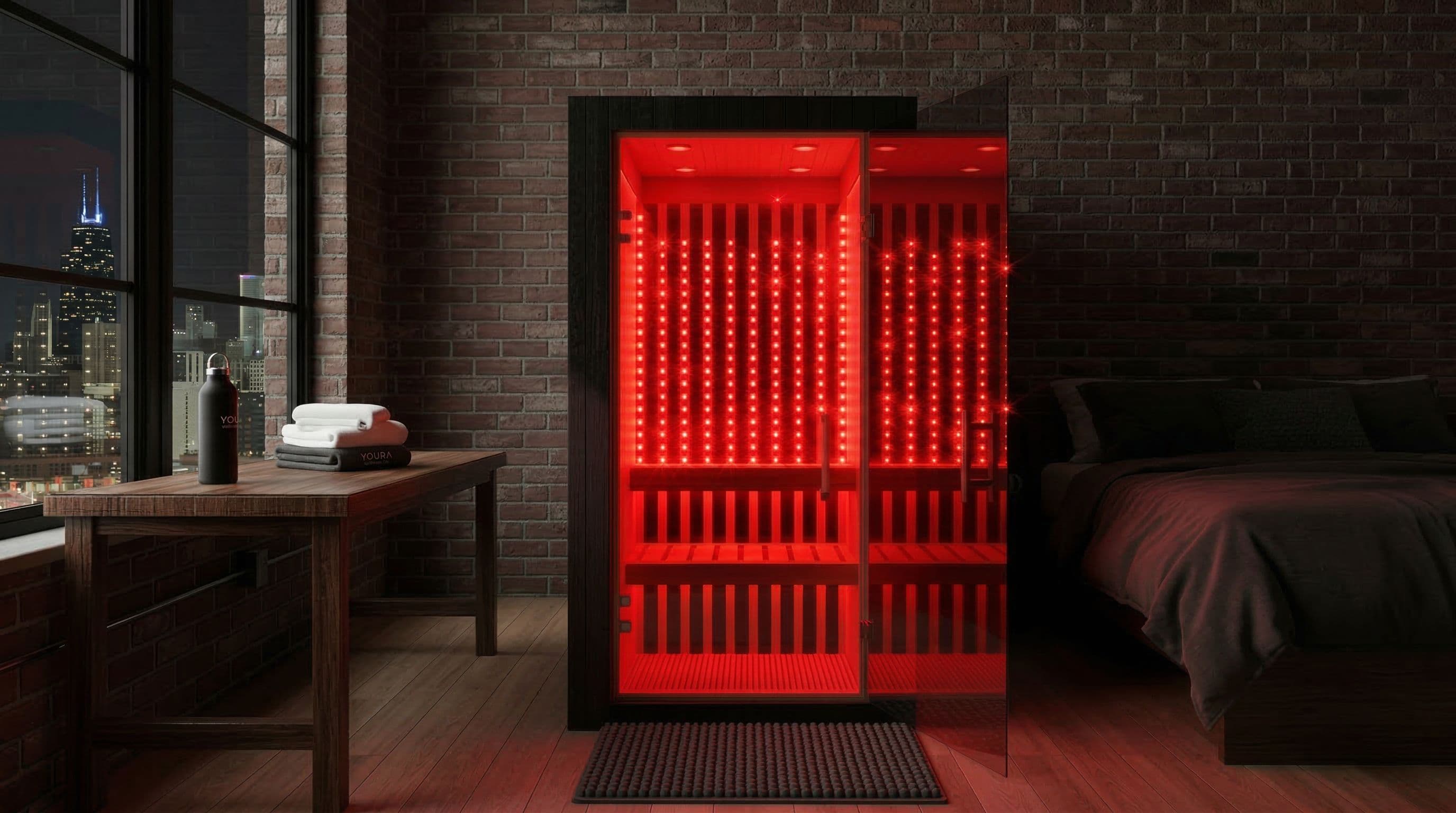

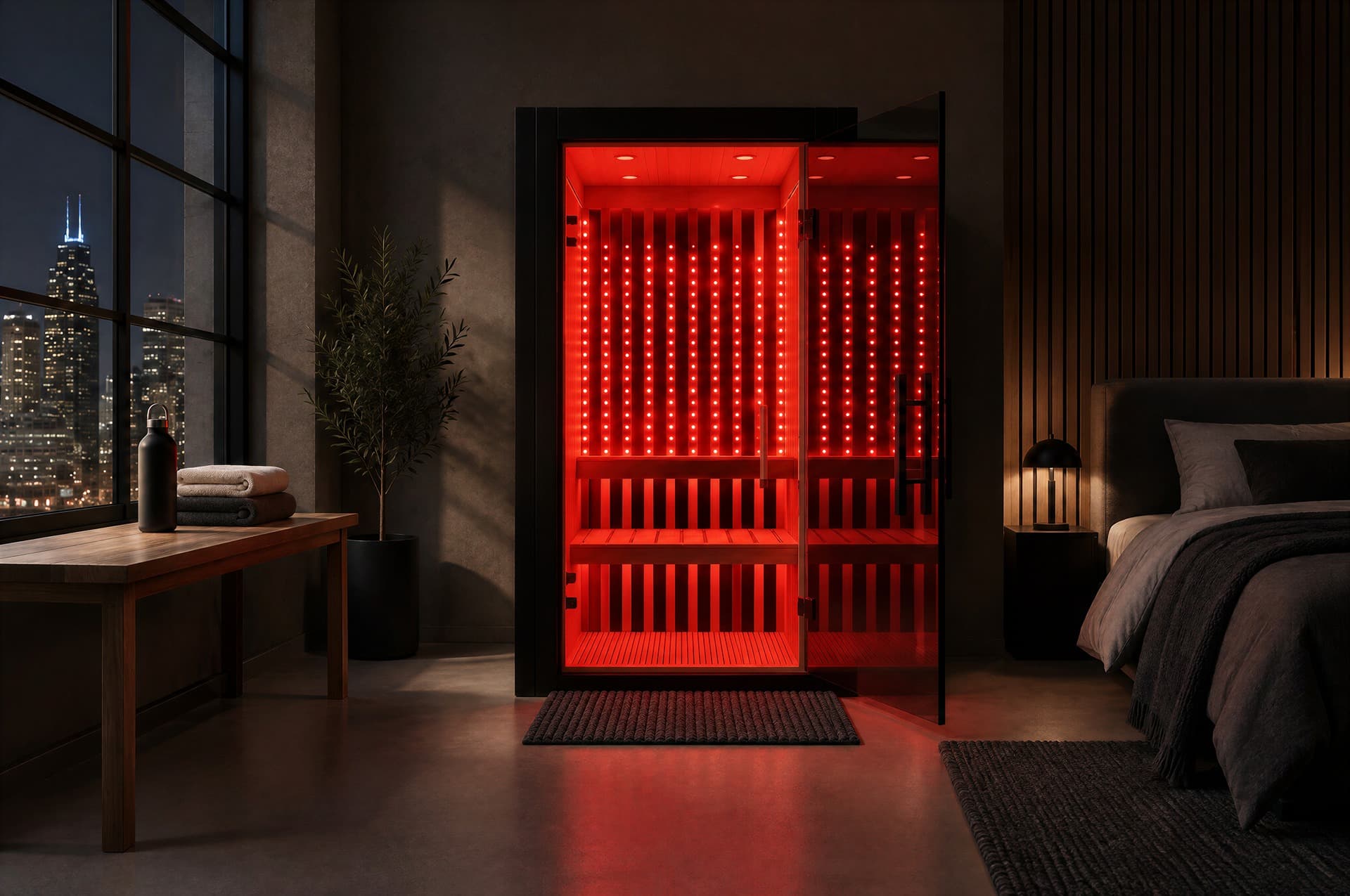

Atlas One™ Red Light Sauna
Enter the Light. Transform from Within.
The Atlas One™ is the world’s first and only red light infrared sauna and wellness portal, backed by science and medical studies. Experience deep cellular healing, faster recovery, and guided transformation—all in one space.

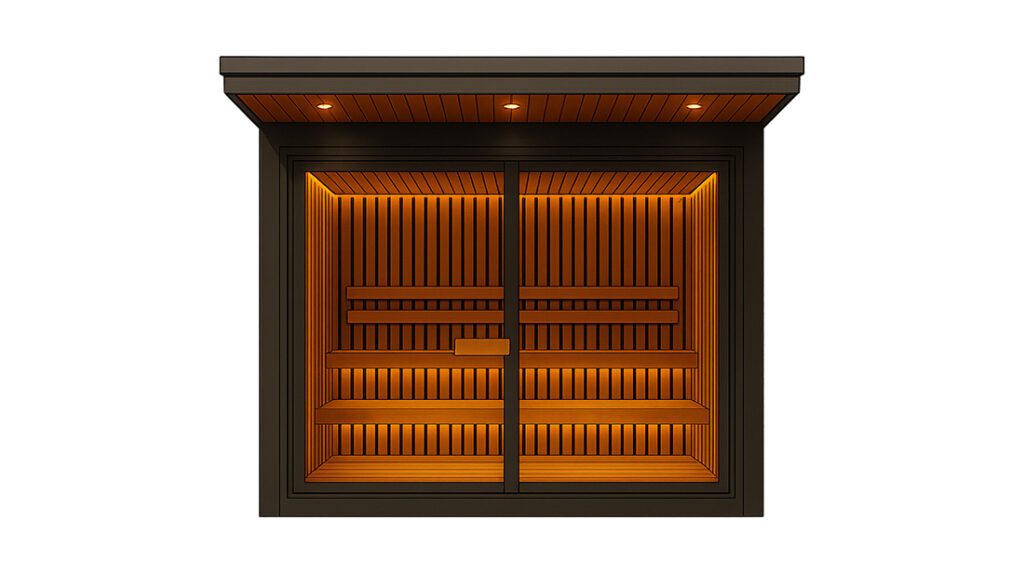

Atlas One™ Sauna Specifications
Width: 8 feet (front-facing side with glass doors)
Depth: 6 feet (side profile from wall to front)
Height: 8 feet (floor to top of roof)
Roof Overhang (Front): 9 feet wide total (1/2 foot overhang on each side)
Roof Overhang (Depth): 2 feet beyond the front wall
Wall Cladding: Vertical black wood paneling
Roof: Flat with recessed lighting and snow load capability
- Weight: 1450 pounds
Interior Width: 7 feet (measured wall-to-wall along the front/glass door side)
Interior Depth: 5 feet (measured from the back wall to the inside face of the glass doors)
Interior Height: 7 feet (floor to interior ceiling)

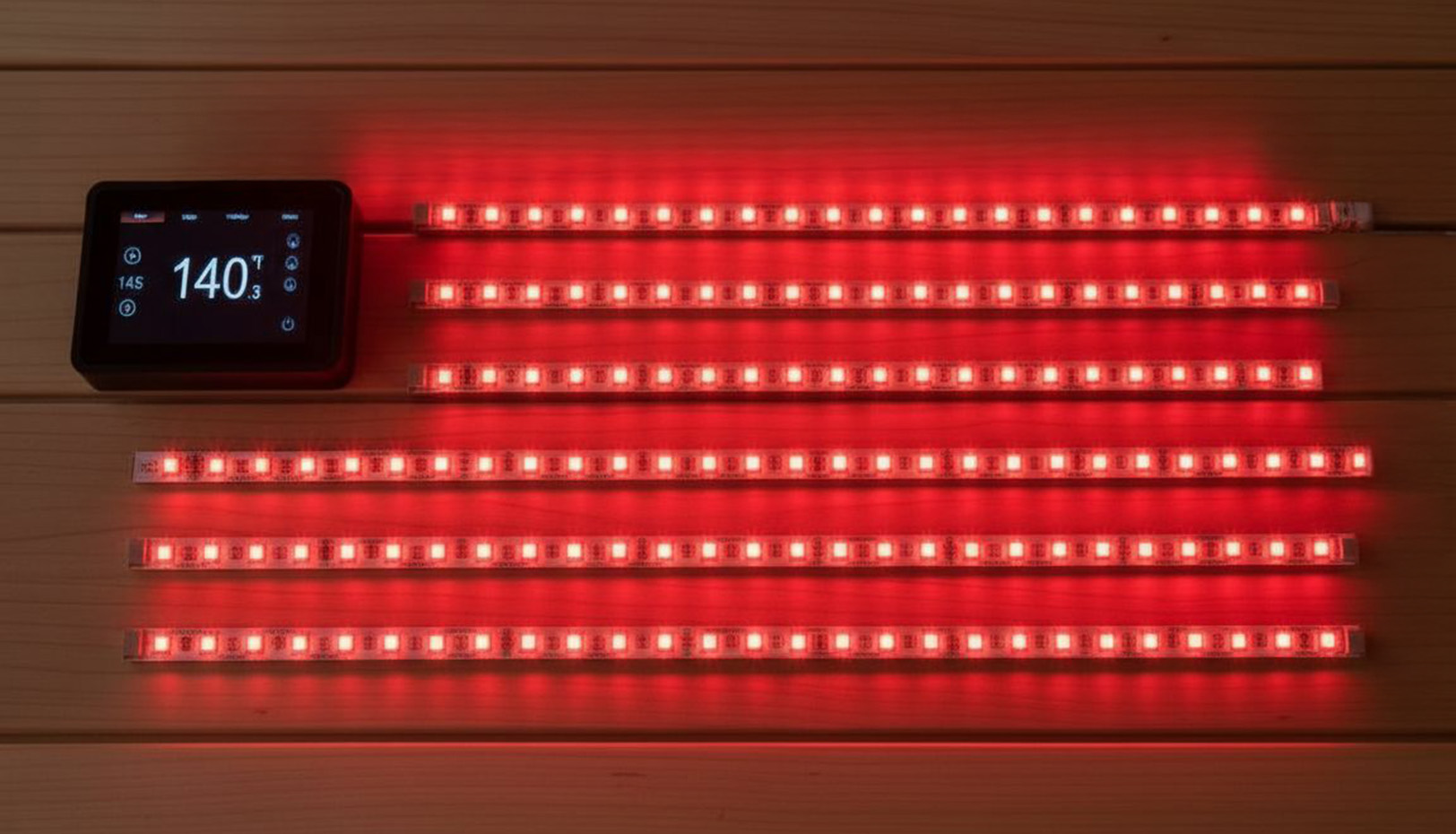

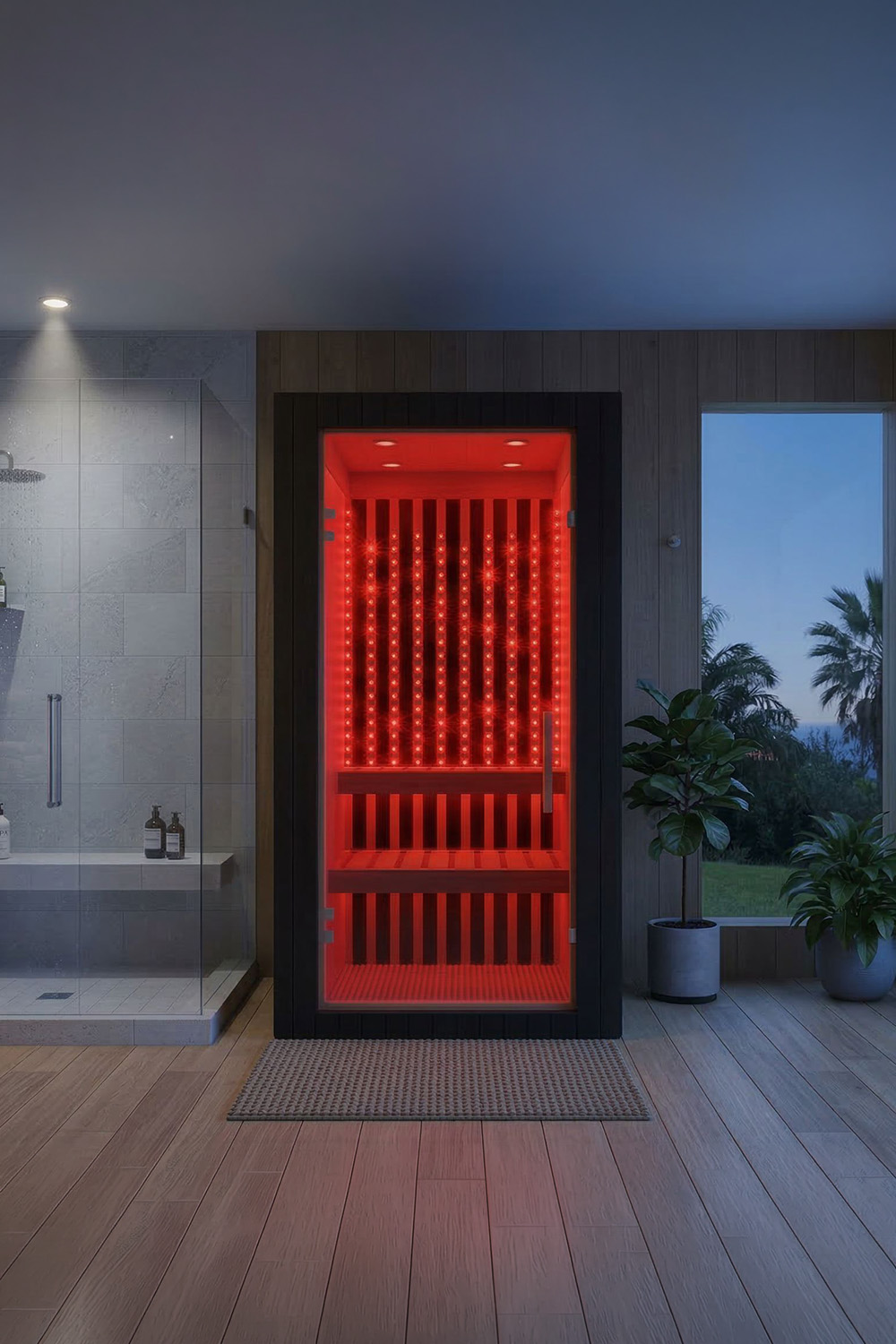

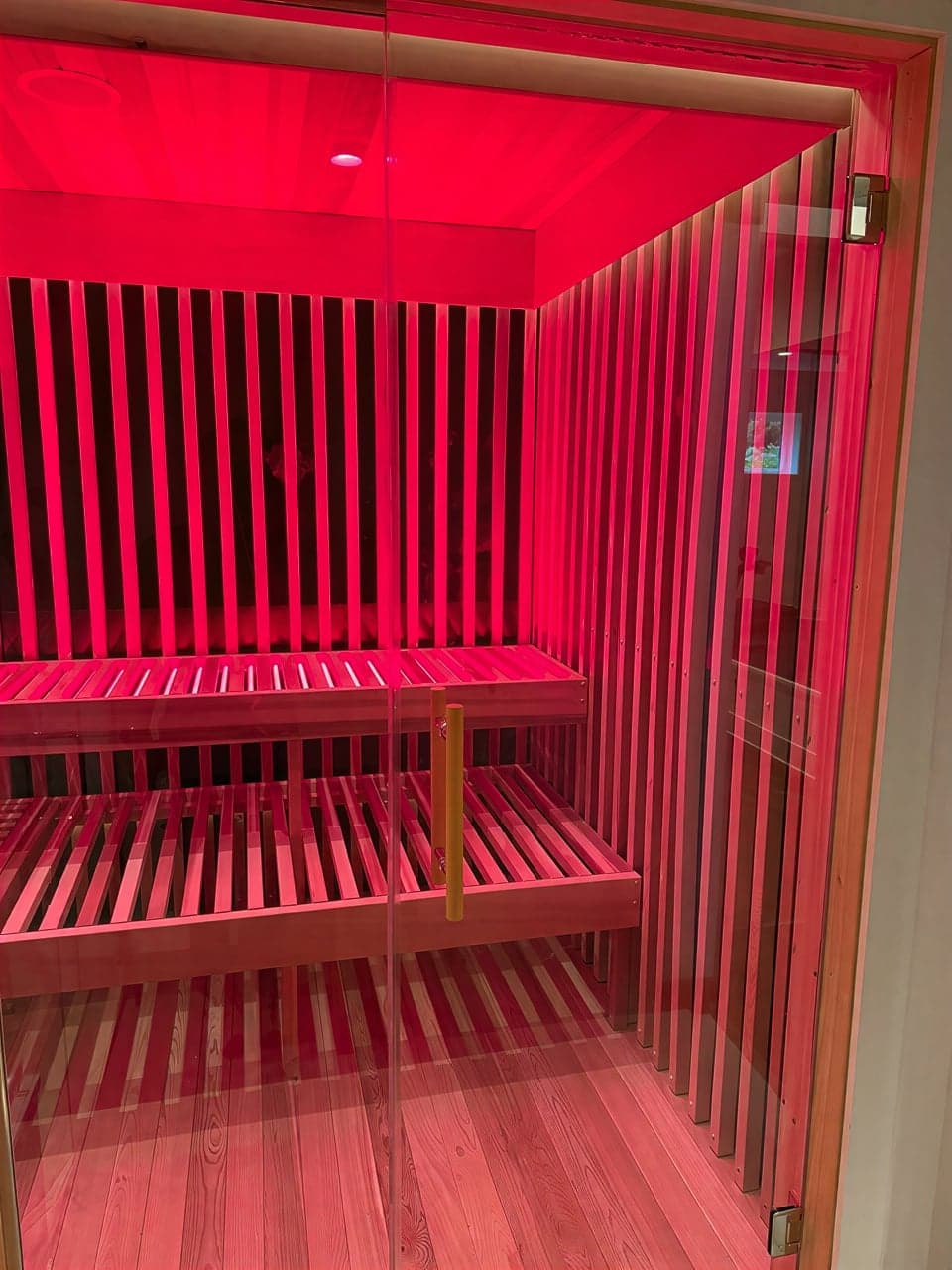

Lighting: Warm amber LED lighting recessed in ceiling and beneath benches
Wall Finish: Alternating vertical Western Red Cedar slats and black carbon heater panels
Flooring: Tongue-and-groove clear cedar with natural variation in tone

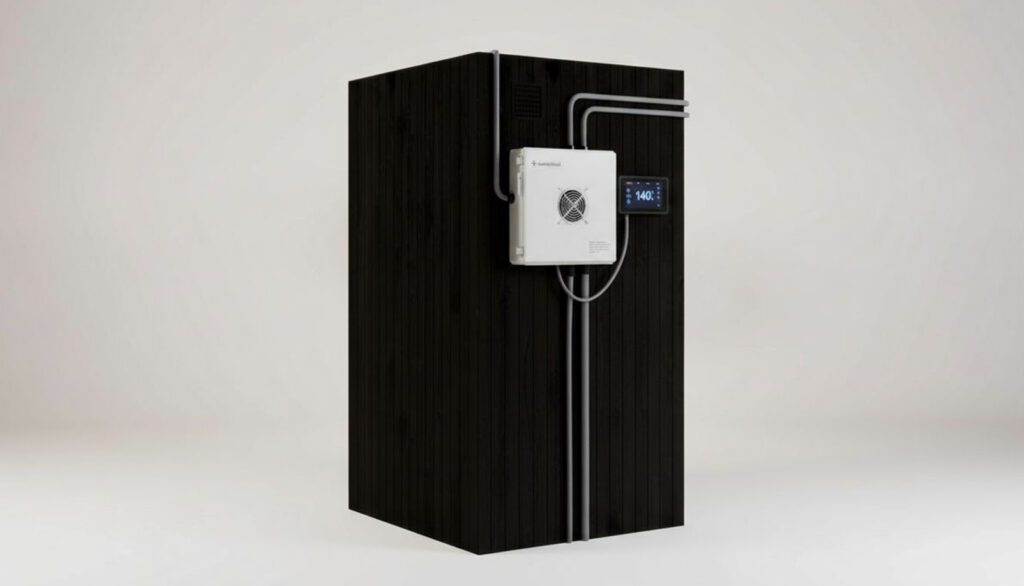

Atlas One™ Sauna Power Requirements
Total Power Draw: 12,000 watts (12 kW)
Voltage: 240 volts
Amperage: 50 amps
Power Phase: Single-phase
Circuit Requirement: Dedicated 50-amp breaker
Wiring: 6-gauge copper wire recommended for 50-amp load
Connection Type: Hardwired (no plug)
Disconnect: Outdoor-rated spa disconnect or subpanel recommended near the unit
GFCI Protection: Required by code for outdoor installations
Installation Note: Must be installed by a licensed electrician in accordance with local electrical codes
